H&R lowering springs and Konig Ampliform 18x9.5 with 35 Offset

[Kvtran21]

Are you on stock camber values? looks nice though

I believe I’m at -1.8 or -2.0 all around. I don’t have any additional suspension mods other than the springs and pulling the front strut pins when the springs were installed.

Sponsored



[DomGSR-T]

I believe I’m at -1.8 or -2.0 all around. I don’t have any additional suspension mods other than the springs and pulling the front strut pins when the springs were installed.

you remove the front pins for a reason? if not it would not have fit? also on an alignment machine, would -2.0 be in specs ?



[12secrd]

You should be fine running those wheel specs. I used to run 18x9.5 +38 with 275/35/18 on Swift springs (is a lower drop than the H&R i believe) and didn’t rub, even on large dips

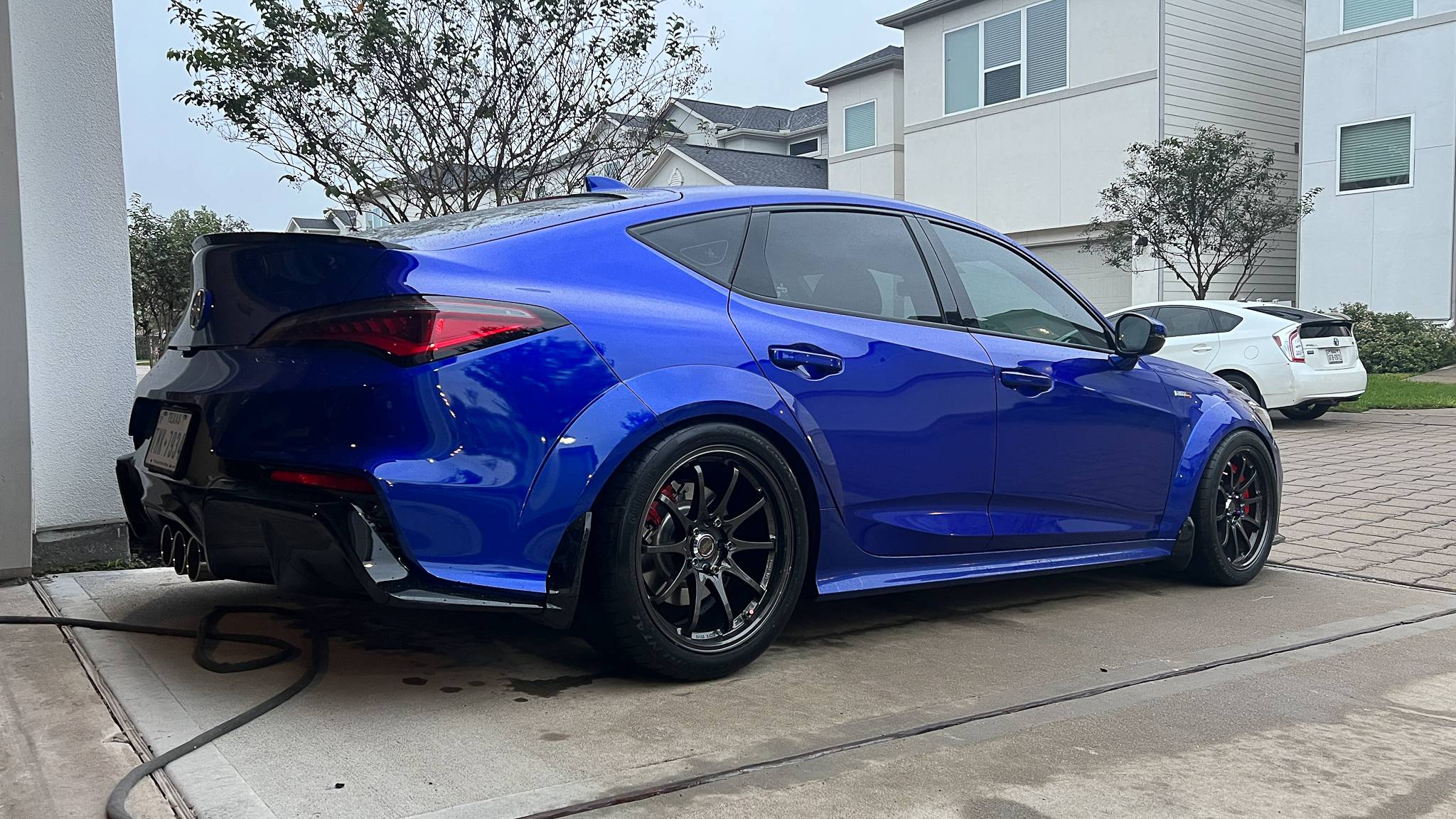

My current setup is 19x9.5 +35 (255/35/19) all around, with a 5mm spacer on the rear, effectively making it 19x9.5 +30. I haven’t noticed any rubbing on this setup either.

Can you please provide a pic, details and supplier of the 5mm rear spacer you are using?



[Kvtran21]

you remove the front pins for a reason? if not it would not have fit? also on an alignment machine, would -2.0 be in specs ?

Removing the pins allow for slightly more negative camber to be achieved in the front. Would not have fit if left alone? I’m not 100% sure, but it’s not uncommon when installing lowering springs (for fk8, fl5 and de5)

Can you please provide a pic, details and supplier of the 5mm rear spacer you are using?

I previously ordered a set of 5mm on Amazon for my model S, which so happens to have the same center bore (64.1) as the Integra. Unfortunately It doesn’t look to be available anymore, but if you do a search for 5x120 64.1 bore 5mm spacers online there’s a few options.

Here’s some I found on eBay:
5x120 - 5mm spacer

Hope this helps!



[12secrd]

I previously ordered a set of 5mm on Amazon for my model S, which so happens to have the same center bore (64.1) as the Integra. Unfortunately It doesn’t look to be available anymore, but if you do a search for 5x120 64.1 bore 5mm spacers online there’s a few options.

Here’s some I found on eBay:
5x120 - 5mm spacer

Hope this helps!
[/QUOTE]

Are the stock/OEM wheel studs long enough to accommodate the 5mm spacer? How many turns did you get with the lugs? Did you still use a wheel/hub adapter?



[StingertimeNC]

Apex sells 5mm Spacers. They must work as the guy I bought my wheels from was using them with no issue.



[Kvtran21]

I previously ordered a set of 5mm on Amazon for my model S, which so happens to have the same center bore (64.1) as the Integra. Unfortunately It doesn’t look to be available anymore, but if you do a search for 5x120 64.1 bore 5mm spacers online there’s a few options.

Here’s some I found on eBay:
5x120 - 5mm spacer

Hope this helps!

Are the stock/OEM wheel studs long enough to accommodate the 5mm spacer? How many turns did you get with the lugs? Did you still use a wheel/hub adapter?

I was able to get about 7.5 turns or so on the lugs with the 5mm spacers. I am not using a hub centric ring at the moment and didn’t notice any vibrations at highway speeds (75+)



[12secrd]

I was able to get about 7.5 turns or so on the lugs with the 5mm spacers. I am not using a hub centric ring at the moment and didn’t notice any vibrations at highway speeds (75+)

Thank you for the response. I was able to get enough wheel clearance with a 3mm spacer. I used the spacers on the front and back to achieve a uniform offset.

with a 3mm spacer I am getting 8.25 turns on the lugs and zero vibration with my hub centric ring. I effectively have a + 42mm offset now with a 19x9.5 wheel with 265/30/19.
Next step will be to figure out if a 265/35/19 tire will fit without rubbing or touch front fender



[DomGSR-T]

Ok new wheels and tires are installed but car will get lowered next week... anyone have an alignement sheet of stock camber and one with the pins removed on a lowered car? is it like -0.5 stock and -2.0 pins removed?



[StingertimeNC]

don't have my sheet but once lowered I was at like -1.8 in front, and went to -1.9 on one side and -2.0 on the other. wasn't much difference for me.



[DomGSR-T]

ok, alignment done, with the pins removed and shock bolted to maximum camber I was at -1.8 left and -2.2 right... brought the right side back to stock settings and now I have front L-1.8 and R-1.9 and both rear are at -2.2 witch is fine... also even at +35 I did not rub so far... this Friday I will go on a 3.5h road trip to my vacation house with the family, this will be the best ''rubbing'' test



[DomGSR-T]

ok I'm back from the big test and I can confirm that H&R lowering springs and Konig Ampliform 18x9.5 with 35 Offset does not rub at all... not even once I got a problem... so for those who wants to save 7lbs per wheels for a descent price, this is a great option



[N4nn3r]

Can you also show pics? I want to see the Konigs on our car as they look great by itself but can’t imagine them on our car right now.



[DomGSR-T]

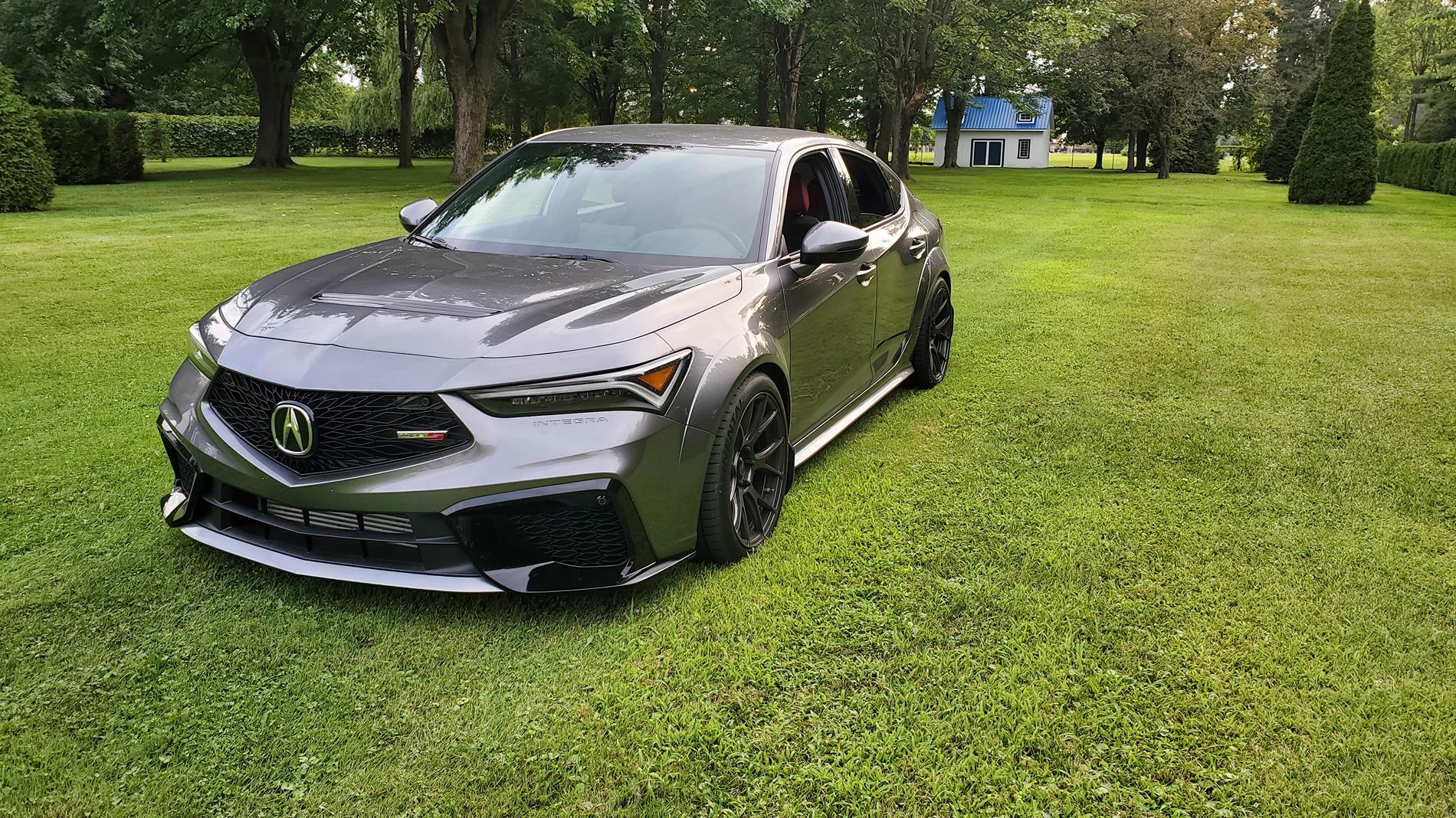

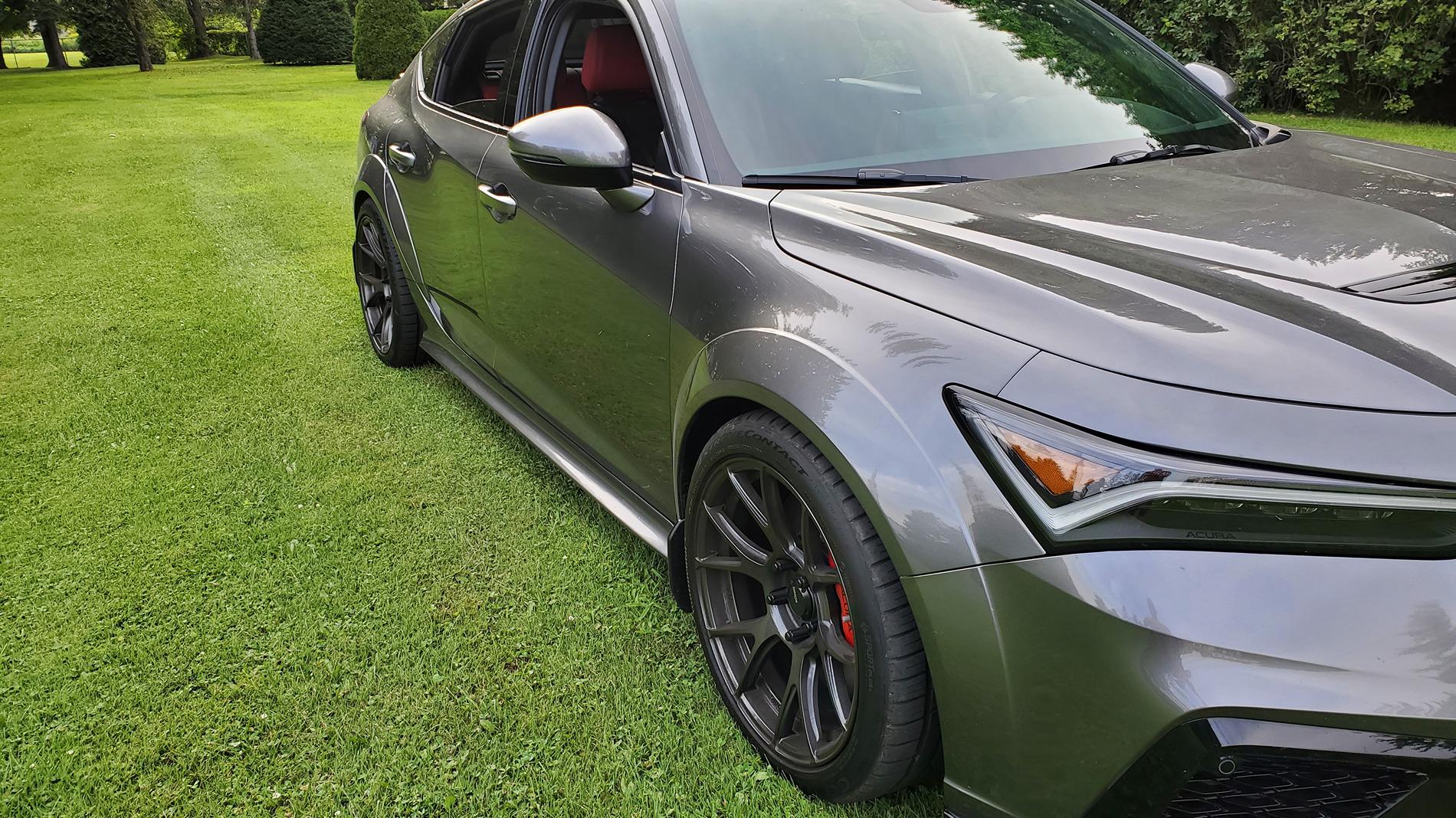

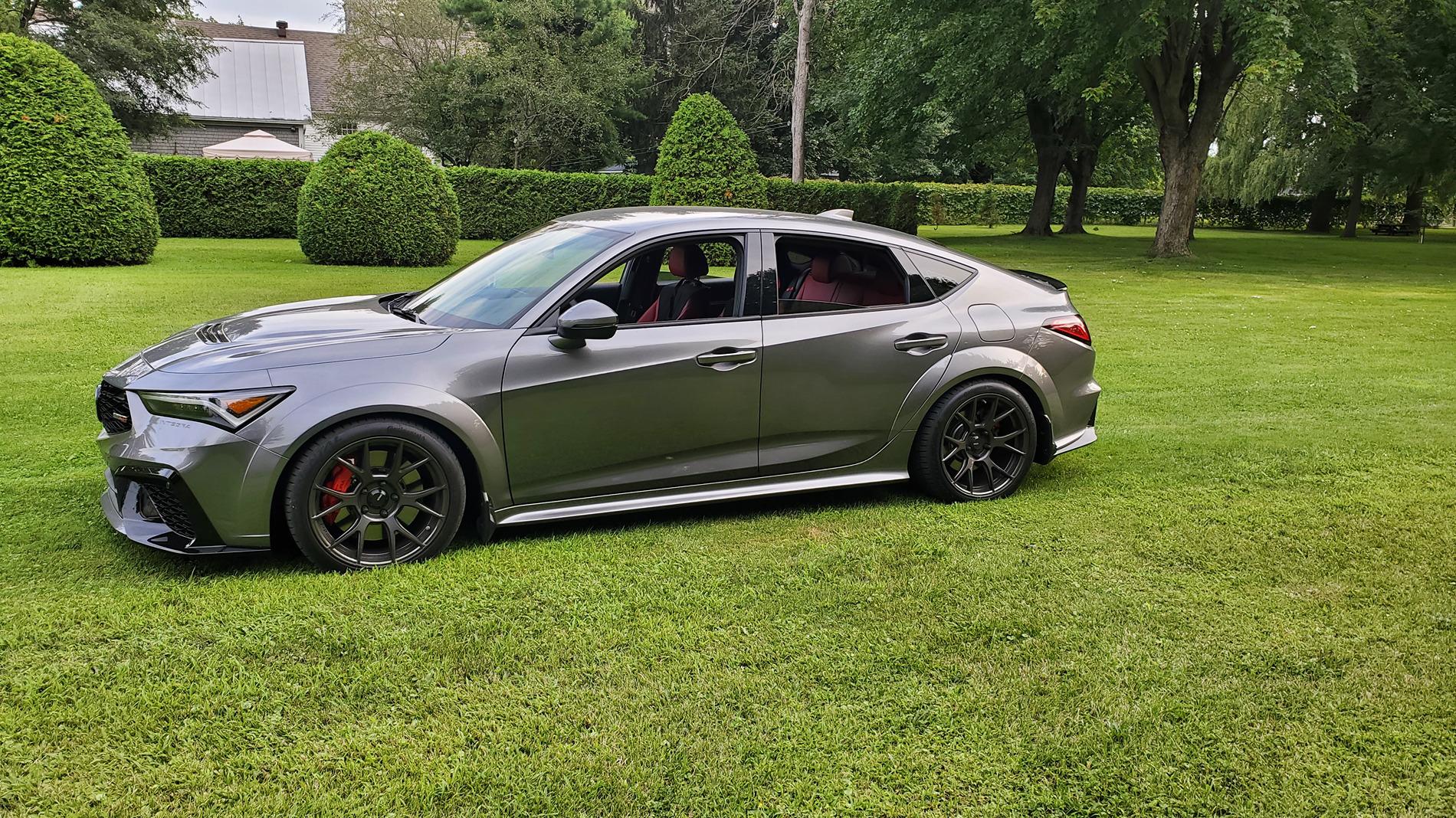

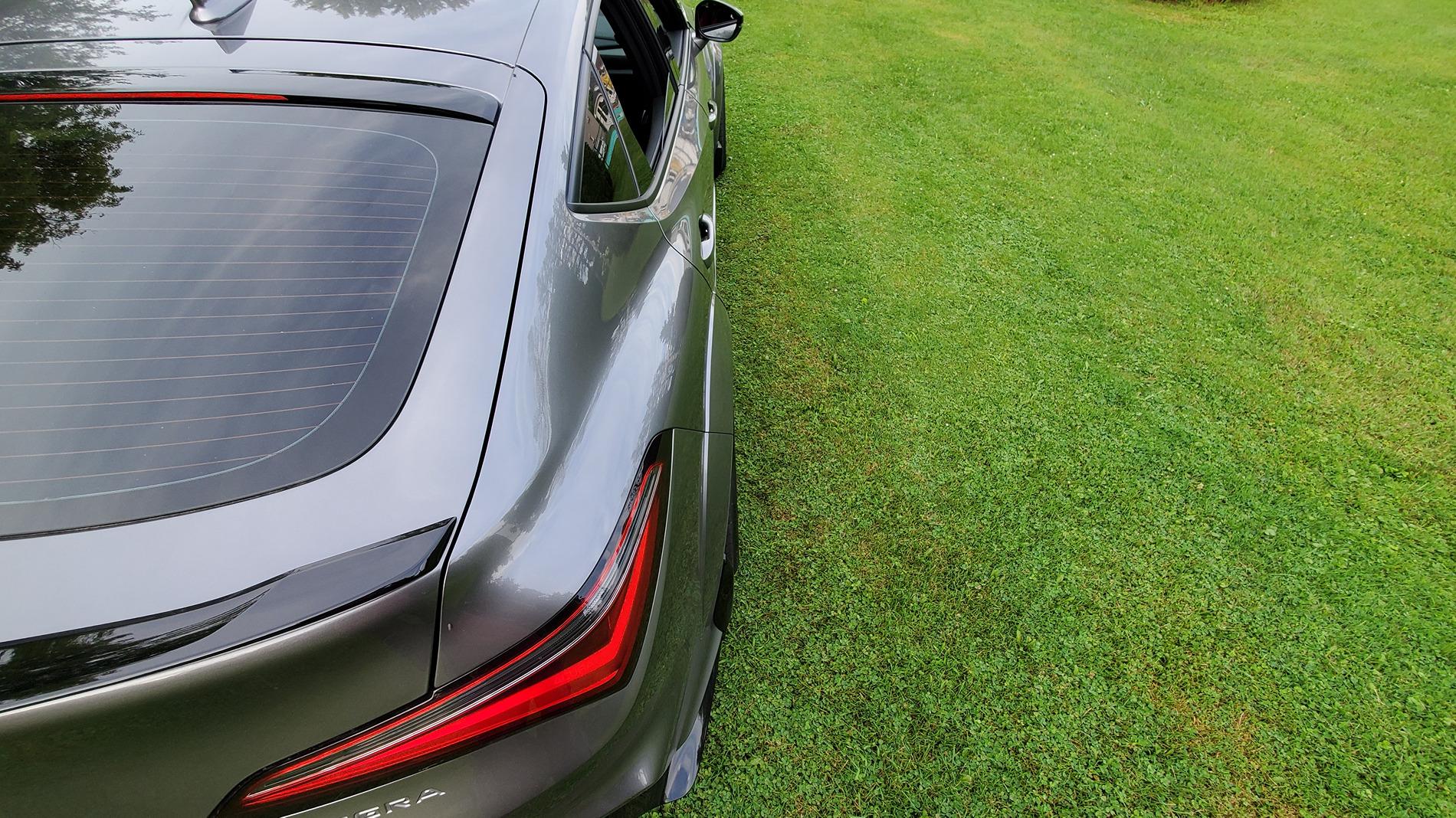

ok just took some pictures, hope they are ok



[N4nn3r]

Wow super nice, thank you!
